0.25mm 280g Waterproof PVC Coated Fiberglass Fabric Cloth For
Flexible Fabric Duct
PVC coated fiberglass fabric is made of polyvinyl chloride coating
over fiberglass fabric. Basic cloth of this coated fabric is
200g/m2 7628 fiber glass fabric. And then it was coated with 40g/m2
grey waterproof/fireproof PVC coating on two sides. PVC coated
fiberglass cloth is a great material performing good on both
fireproofing and waterproofing. PVC makes the surface of high
tensile strength fiberglass cloth be more smooth and waterproof.
The total weight per unit area of this 7628 PVC coated fiberglass
fabric is 280g/m2 and total thickness is about 0.25mm.
PVC coated fiber glass fabric is a fire resistant coated fiberglass
fabric with great properties such as flame resistance,
waterproofing, cold protection and chemical corrosion resistance,
abrasion resistance, washable, good capability of heat maintaining.
PVC coated fiberglass fabric has been used widely in sports
euipment field before, such as surfboards, boats and yachts and so
on. Now this waterproof fiberglass material is widely used in auto,
train, ship cover, open yard cover, lumber tarps, fire retardant
tarps, insulation tarps, baseball tarps, gym floor tarps, boat
tarps, pool covers, motorcycle covers, barbecue covers, industrial
and some other fields. PVC coated fiberglass fabric has longer
working life and better tensile strength than ordinary awning
fabric materials.
Specification:
| Composition | Glass Fibers |
| Coating | Grey polyvinyl chloride coating(40/40) |
| Weight | 280gsm |
| Width | 100, 127cm, 155cm |
| MOQ | No MOQ for common stock color and weight |
| Serve Temperature | Base Cloth: below 550℃ Coating: below 260℃ |
Application:
- Awning materials
- Welding protective cloth, used as a welding curtain
- Heat protection blanket, foundry sparks protection.
- In motor vehicle industry, car building
- Waterproof and heat resistant covers for piping outside.
- Used in chemical industry, auto-manufacture, flexible fabric duct
and sealing industry.
- PVC coating can be Grey, Black, Brown, Gold, Natural White, Orange,
Blue, etc. Please inform the pantone color
About Basic Cloth
The basic fabric of this PVC coated fiber glass fabric is 200g 7628
electronic fiberglass cloth. It is usually used for copper clad laminate. However, because of its light weight and great combinations with
various resins. At this moment, 7628 fabric is not only used for
electrical application, but also widely used in other appliations.
In fact, it can be used for surfboard building too.
All in all, applications of this glass fiber cloth are sports
products like surfboard/snowboard building, coating fabric, heat
protection curtain/blanket, cover materials, electrical appliances,
industrial and packing use.
| Item | Count(cm) | Yarn Type | Thickness | Weight | Common Width |
| 7628 | 17.3/13 | G75 1/0 0.7Z G75 1/0 0.7Z | 0.2mm | 200gsm | 100-155cm |

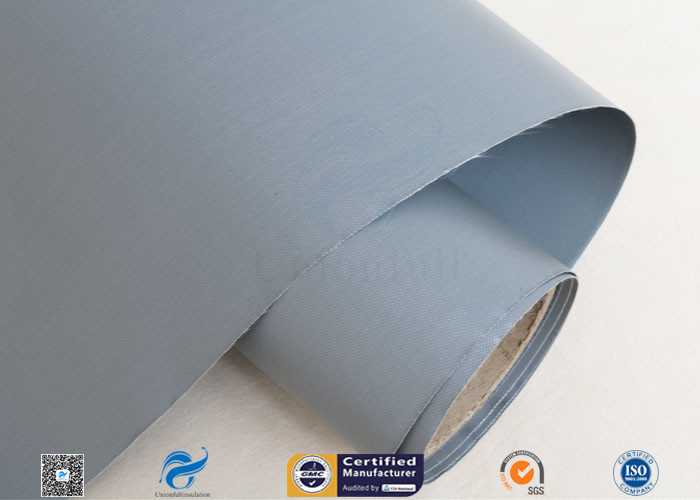

Picture:
