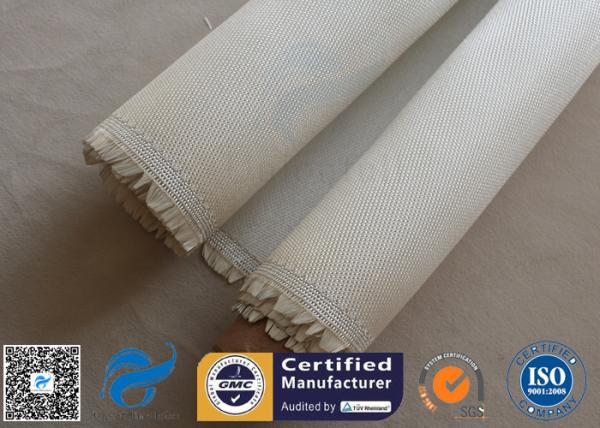

Satin Weave 600gsm 800℃ Fiberglass High Silica Cloth For Heat Insulation

High silica cloth is High purity silicon oxide amorphous continuous fiber fabric(with more than 96% SiO2 content.). It is woven from e-glass fiber glass yarns. Then the acid treatment and calcination techniques make the glass fiber fabric with higher softening point and higher density. Its softening point is close to 1300℃ and it can withstand a temperature below 800℃ continuously. High silica cloth is an ideal high temperature fire resistant fabric with many properties such as chemical resistance, stable chemical property, flexiblity, abrasion resistance and electrical insulation. It is widely used for industrial thermal insulation.

This 600g/m2 high silica cloth is 0.7mm. Count per cm is 18/13. Weave type is 8 harness satin weave. There is a seven-by-one interfacing where one weft yarn floats over seven warp yarns and under one in this weave. 1200g 1.3mm high silica cloth is 12HS weave.

Data Sheet Of UPH-860:

Features:

• Abrasion resistant
• Electrical insulation
• Chemical, phisical properties stablity
• High temperature heat resistant
• Durable and tear resistant
• Eco friendly, no pollution after burning

Application:

1. Cutting protection
2. Welding spatter protection
3. Aerospace, nuclear thermal insulation

4. Machinery industry protection

5. Oil & gas field heat insulation cover

6. Metallurgy, auto industry

Pictures:

Unionfull® Group Ltd is a quality environment friendly (ISO - 9001 & 2008) modern, hi-tech enterprise specialized in manufacturing of Thermal Materials and Heat Resistant Materials, such as Fiberglass Fabric, Silica Cloth, Silicone coated Fiberglass Fabric, Needle Mat and so on. Unionfull Group Ltd,. China Thermal Products supplier provides a comprehensive range of products including:

        1) Fiberglass Fabric

        2) Thermal Insulation Materials

        3)  High Silica Fabric

        4) Silicone Coated Fiberglass Fabric

        5) Fiberglass Needle Mat

        6) Glass Roving

        7) Fiberglass Fire Blanket

        8) Welding Blanket

Our products are used by some of the very well known industrial houses in the Petrochemical, Power, Cement, Steel, Chemical, Pharmaceutical, Gas and Process Industry.
We heavily export our products to different companies / industrial houses in the UK, US, Europe, Australia, Africa and the Middle East.

Unionfull Group Ltd is your premier supplier of industrial thermal insulating, welding and cutting protection and safety products.
