    6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction

    Ask Lasest Price
    Brand Name : Unionfull
    Model Number : JT8200PG-D40-100
    Certification : ISO9001:2008, SGS;TUV
    Price : $7--$20 / Piece
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 20,000 Square Meters Per Day
    Delivery Time : 3 weeks after receiving payment
    • Product Details
    • Company Profile

    6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction

    6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction


    Construction and Materials: Coated spring steel wire helix Special coating prevents corrosion, PVC coated fiberglass cloth.


    Flexible air duct is designed for use in all pressure cooling and heating ventilation and air-conditioning installations. Air duct provides an economical way to for slove problems like misalignment between system components and ducting around obstacles where fabricated and fitted ducts are difficult and costly to install. Flexible air duct is ver suitable for new jobs or refit work, and is especially useful when making system extensions or changing conditioned zones now or in the future.


    It is widely used for excessive vibration or systems requiring constant mobility. Besides, its material PVC coated fiberglass fabric is fire resistant and chemical resistant, it is suitable for high temperature air application. It is 280g/m2 fiber glass fabric coated with grey PVC on both sides. It is 0.25mm thick. Fibreglass cloth is light weight compared with other materials which with similar properties. Its high tensile strength, abrasion resistance, chemical resistance all improve flexible duct's properties.


    Heat resistance of this PVC glass fiber air duct is -50 to 260℃. The basic fiberglass fabric can withstand heat below 550℃.


    Specification


    ItemFlexible Air Duct
    MaterialPVC Coated Fiberglass Cloth
    ColorGrey
    Diameter150mm
    Thickness0.25mm
    Length5m, 10m
    Temperature

    Fiberglass ≤ 550℃

    PVC Coating ≤ 260℃


    Features


    • Flame resistance
    • Electrical insulation
    • High strength, tear resistant
    • Abrasion resistant
    • Easy to install
    • Fiberglass cloth for waterproofing

    Application


    • Ventilation of welding and galvanizing plants
    • Hot air distribution
    • Automobile exhaust hose reel
    • Gas exhaust control
    • Hot fume control

    Details Pictures

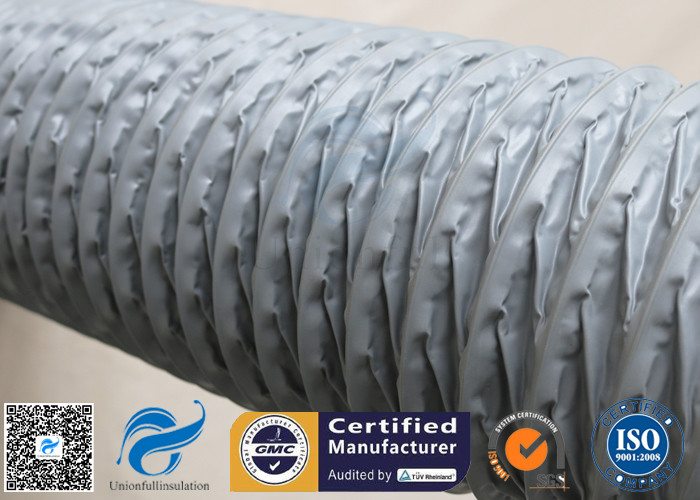

    6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction6" Grey PVC Coated Fiberglass Fabric Flexible Air Duct For Fume Extraction
