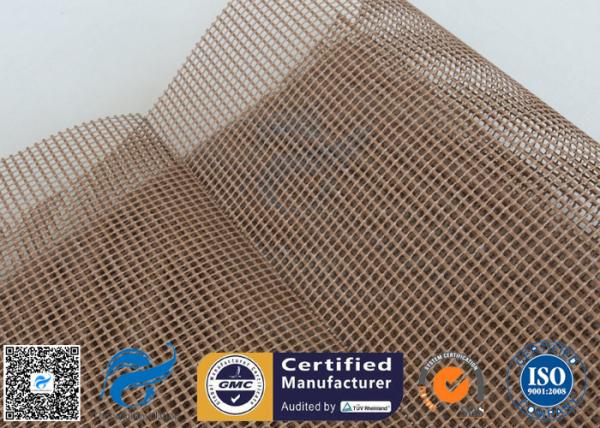

PTFE coated fiberglass conveyor belt is made of glass fiber open mesh cloth impregnated with polytetrafluoroethylene (PTFE) emulsion. Mesh size includes 1mm*1mm, 2mm*2.5mm, 4mm*4mm and 10mm*10mm. PTFE coating can be brown, beige or black colors. According to the different warp and weft, there are single weft open mesh conveyor belt and double weft open mesh conveyor belt.

With high temperature resistance (short term up to 300°C, up to 260°C continuously), chemical resistance and high tensile strength, Unionfull industrial conveyor belts are used in various fields from industrial electroplating to the food fields. Thanks to the low adhesion of PTFE coating, adhesions can be reduced to the minimum. Detach of materials and cleaning are simplified. Detergents can be reduced ot sometimes are not necessary.

Properties

• working temperature from - 50°C to 260°C
• corrosion resistance
• air permeability
• excellent dimensional stability and high strength
• chemical resistance to acid and alkali
• HF, IR, UV and microwave resistant
• non stick and easy to clean
• high temperature transmission, reduce the energy in thermal application

Specification

Width: 4000mm max.

Weave: single weft or doule weft

Edge reinforcement (common): PTFE film, PTFE coated fiberglass fabric

Joint (common): Spiral joint, bull nose joint

Applications

• cleanroom usages in the electronic fields
• production of solar wafers
• laminating machines & presses
• dryer belt in factories
• separation layer in vulcanising presses
• shrinking system
• blister packaging machines
