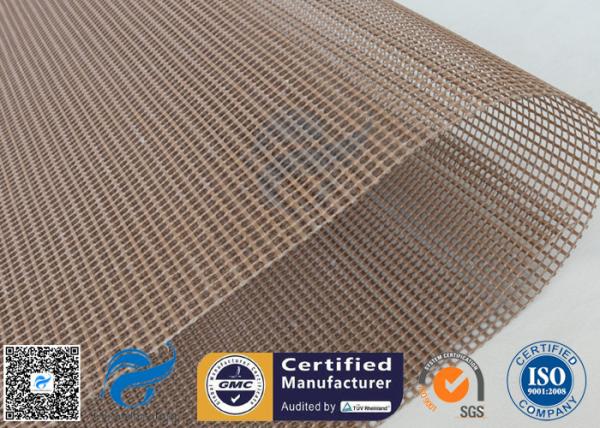

Brown PTFE Coated Fiberglass Mesh Fabric 580G 4x4MM High Strength Conveyor Belt

PTFE fiberglass conveyor belt is made of basic glass fiber open mesh fabric impregnated with polytetrafluoroethylene (PTFE). Mesh size can be 1mmx1mm, 2mmx2.5mm, 4mmx4mm and 10mmx10mm. 4x4mm is widely used specification. Fiberglass open mesh is a very high strength and abrasion resistant material, which is suitable for durable conveyor belt usages. For weave, there are single weft fiberglass mesh conveyor belt and double weft fiberglass mesh conveyor belt. Double weft belts with higher tensile strength. It is used for most industrial conveyor application.

Fiberglass mesh is fire resistant. Its working temperature is short term up to 300°C and 260°C continuously. The basic mesh is able to withstand 550℃. Fiber glass mesh belt can keep stable dimension under continuous heating. What's more, mesh belt is chemical resistant, durable, light weight and non toxic. Industrial fiber glass conveyor belts are used in various fields like industrial electroplating and food industry. Due to the low adhesion of PTFE coating, this belt is non stick and easy to clean.

Properties

• heat flame resistant, - 50°C to 260°C
• corrosion resistant
• great air permeability
• non stick, easy to wash by soapy water
• anti chemical acid alkali
• IR, UV, microwave resistant
• good mechanical characteristics
• food grade PTFE coating, non-toxic

Specification

Width: 4000mm max.

Weave: single weft or double weft

Edge reinforcement: PTFE film, PTFE coated fiberglass fabric

Joint: Spiral joint, bull nose joint

Applications

• laminating machines & presses
• tortilla belts, food process belt
• textile/printing dryer belts
• packaging machines belt
• laundry monitor conveyor belt
• non stick conveyor belts
• conveyor belt heat sealer


Unionfull® Group Ltd is a quality environment friendly (ISO - 9001 & 2008) modern, hi-tech enterprise specialized in manufacturing of Thermal Materials and Heat Resistant Materials, such as Fiberglass Fabric, Silica Cloth, Silicone coated Fiberglass Fabric, Needle Mat and so on. Unionfull Group Ltd,. China Thermal Products supplier provides a comprehensive range of products including:

        1) Fiberglass Fabric

        2) Thermal Insulation Materials

        3)  High Silica Fabric

        4) Silicone Coated Fiberglass Fabric

        5) Fiberglass Needle Mat

        6) Glass Roving

        7) Fiberglass Fire Blanket

        8) Welding Blanket

Our products are used by some of the very well known industrial houses in the Petrochemical, Power, Cement, Steel, Chemical, Pharmaceutical, Gas and Process Industry.
We heavily export our products to different companies / industrial houses in the UK, US, Europe, Australia, Africa and the Middle East.

Unionfull Group Ltd is your premier supplier of industrial thermal insulating, welding and cutting protection and safety products.
