Insulation Jacket 250℃ Grey Fiberglass Fabric Removable Blanket
Removable thermal insulation blanket jacket is made of fiberglass
fabric and needlemat to eliminate heat loss of strainer, filters,
valves, pipe, turbine, etc. Compared with sheetmetal, fiber glass
cloth is more flexible and easy to fabricate. Due to its quick
removal and re-application, exhaust insulation wrap is mainly used
in heat-exchanger rooms, manufacturing plants application, boiler
rooms, etc. Jacket can be open with fire retardant velcro and
buckles so this removable insulation jacket is applied to cover the
equipment.
Structure of jacket is a sandwich design. Between two layers of
single side grey silicone coated fiberglass fabric is e-glass
fiberglass needle mat. It is ideal fire resistant and eco-friendly
material. Fiber glass needlemat can be recycled. This jacket is
light weight but high strength, durable, chemical resistant and
electrical insulated.
With this 25mm jacket, high temp air, gas, oil or hot liquid in the
object won't makes the surface too hot. Also it can protect the
inside object from heat and cold damage. Workers won't feel itchy
or too hot when they install and remove the cover.
Data Sheet
| Item Name | Removable Insulation Mattress |
| Fit | Actuator |
| Weight | 3KG |
| Thickness | 25mm |
| Size | Customized |
| Outside Materials | Name | Silicone Coated Fiberglass Cloth |
| Work Temperature | Fiberglass Cloth: 550℃ |
| Silicone Coating:260℃ |
| Inside Materials | Name | Fiberglass Needle Mat |
| Work Temperature | 800℃ Continuously |
IR Test
IR Test result of this removable insulation cover showed that when
the temperature inside of the equipment goes up to 300℃, the
surface of jacket is below 32℃.
Features
- Removable, install and remove easily
- Heat resistant
- Low heat loss
- Surface temperature will be below 40℃ continuously
- Smooth surface, no itchy
- Chemical resistant and oil resistant
- Easy to clean, washable

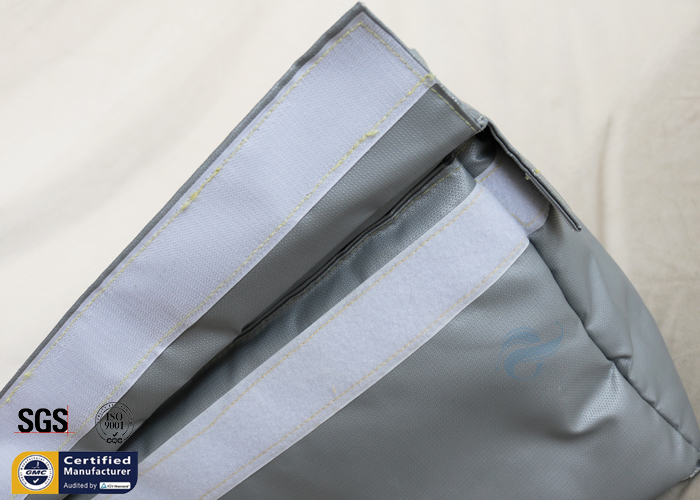

Images Of Insulation Blanket
