0.43mm Heat Reflective Aluminium Foil Laminated Fiberglass Fabric
UPEAL-8732 is one of the aluminum foil glass fiber fabrics. It is made of 3732(430g/m2) woven fiberglass fabric and then laminated with a reflective
aluminium foil. The total mass per unit area of is UPEAL-8732 is 480g/m2. Totally thickness is 0.43mm.
3732 fiberglass fabric is the base fabric of this fabric, which
performs well under temperatures ranging from -100° F to 1022°
F(-50degree Celsius~260degree Celsius). And glue of aluminiul foil should be used below 572°F/300℃.
However, it does need time for aluminium foil to absorb enough heat
to melt, so in fact it can withstand higher temperature for short
time.
- Thickness of aluminium foil: 7um, 18um, 25um, 50um(max)
- Adhesive for foil: Hydrogel/acrylate adhesive
- Common Width: 100cm/127cm/150cm
- Roll Length: Common: 50-100m
Specification:
| Materials | Glass Fibers |
| Coating | Aluminium Foil |
| Total Weight | 430g/m2+50g/m2 |
| Total Thickness | 0.43mm |
| Common Width | 100cm, 127cm, 150cm |
| MOQ | 1000 meters |
| Serve Temperature | Base Cloth: below 550℃ Aluminium Foil: below 300℃ |
Features:
- Waterproof
- Heat Reflective
- Fireproof
- High Tensile Strength
- Chemical Resistance
- Low Moisture Absorption
- Electrical Insulation
Picture:

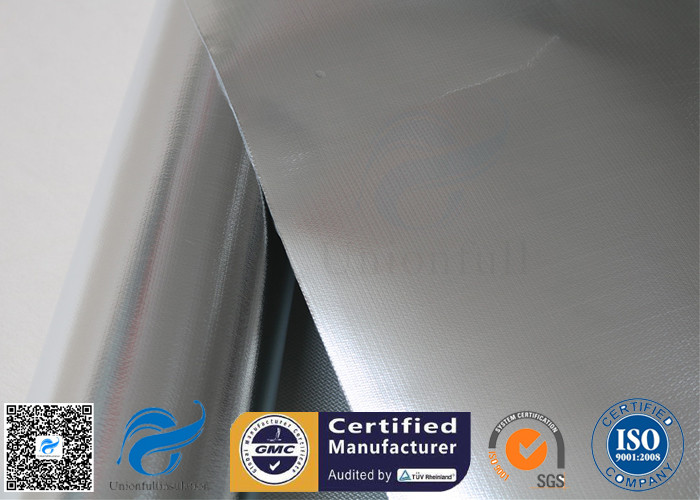

0.43mm Heat Reflective Aluminium Foil Laminated Fiberglass Fabric
Images
Application Of These Materials:
The aluminium foil laminated fiberglass fabric provide excellent
heat insulation: reflect 95% of radiant heat energy in addition to
resisting other heat transfer from conduction, convection, and
radiation. The side of aluminium foil forms an effective barrier
against moisture, air currents and vapors. It is economical
solutions in many field.
Main field of aluminum foil fabric application is fireproof
production, such as heat resistant fire protective
blankets/screens/curtains. And always used as thermal barrier,
protection of the equipment, high temperature protective covers of
furnaces, turbines, screens in order to protect them from molten
metal splashes and thermal insulation.
Unionfull's aluminum foil composite series are mainly used as the
thermal insulation materials of:
- Steam heating pipelines; excellent functions of fire -resistant,
anti-corrosion
- Sound -proof materials in construction; sound absorbability
- Protective layer of super glass wool; heat isolation
It can also be used as packing materials for the export equipment
with the functions of damp proof, mildew proof, fire existence and
anti corrosion.
