FDA 0.2mm Copper Non Stick PTFE BBQ Grill Mat PTFE Oven Pan Liner
Materials of this BBQ grill mat JT8350TC-20-4033 is fiber glass
cloth and food grade ptfe coating. The grill mat/oven liner can be
used below 260℃. Can be used in microwave, oven.
Mass per unit of this PTFE fiberglass materials is 350g/m2.
Thickness of this grill mat is 0.12mm or 0.2mm. One set of 40x33cm,
33.5x23.5cm is very common used size. Weight of 1 set is totally
74g, very light weight!
This light weight grill mat is convenient to use. Non stick and
easy clean. Don't waste your time.
Customized order is acceptable! If you need customzied color box or
other packaging for this BBQ mat, please contact for more
information.
Data Sheet
| Item | BBQ Grill Mat/Pan Liner |
| Materials | Fiberglass fabric, food grade PTFE coating |
| Color | Copper(or black, brown) |
| Size Of Set | 2pcs: 40x33cm, 33.5x23.5cm |
| Thickness | 0.2mm |
| Weight | 74g one set |
| Temperature | -70℃--260℃ |
| Packaging | One set in PE bag or Color Box |
Features
- Light weight. Weight of one set grill mat is only 74g.
- PTFE coated glass fabric
- Non stick. Very smooth surface
- Easy to clean
- Eco-friendly
- FDA quanlity. Can be used below 260℃
- Safe for freezer and microwave
- Reusable. Up to 3000 baking uses or more per mat
More about this materials
This set of BBQ grill mat is made of 350g/m2 teflon coated
fiberglas fabric. PTFE coated glass fiber fabric has excellent
non-stick properties. Standard grade contains an excellent balance
of substrate weave, finish and coating.
PTFE Coated Fiberglass Fabrics offer outstanding non-stick
performance, high temperature, chemical and fire resistance as well
as excellent electrical properties, and they have been used in a
wide range of industrial applications. It also has excellent
dimensional stability.
| Name | PTFE Coated Fiberglass Fabric |
| Weave | Plain Weave |
| Color | Copper, brown, black |
| Total Weight | 350g/m2 |
| Thickness | 0.08mm, 0.12mm, 0.2mm |
| Width | 100cm, 127cm, 155cm |
Features
- Dimensional Stability: PTFE coated fiberglass fabrics will not
stretch or shrink. Nominal elongation break is 3-4 percent. The
average linear thermal expansion coefficient of "E" glass is 5.4 by
10.6 cm/cm/℃.
- Good Thermal Properties: Serve temperature of the base cloth glass
fiber can be 550℃, PTFE coating can be 260℃. Fiberglass fabrics
have a low coefficient of thermal expansion and relatively high
thermal conductivity. Glass fabrics will dissipate heat more
rapidly than asbestos or organic fibers.
Application of this materials
- Mold-releasing sheets.
- For printing, drying screen-printing machines.
- Adhesive interlining belts.
- Heat sealers, frozen food transportation, defrosting belt and
baking belt.
- Packing, side band sealing.
- Paper conveyor belt of copiers.

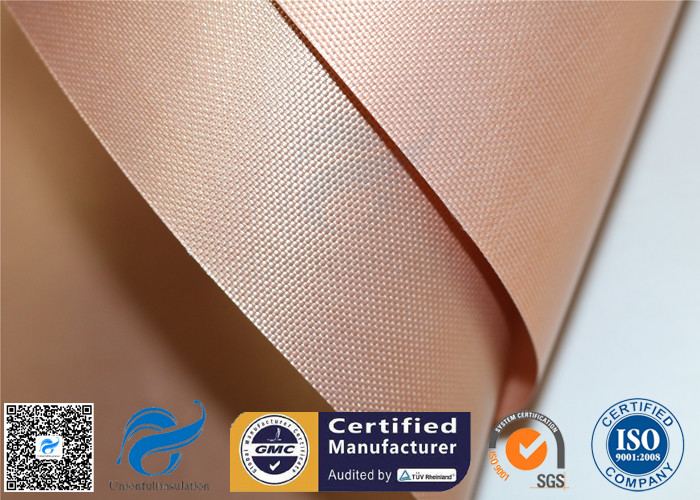

Picture:
