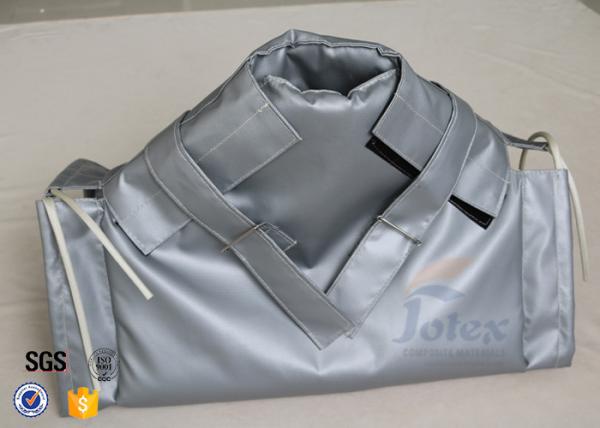

Fireproof Heat Resisatnt Thermal Insulation Covers For Gate Valve Protection

Thermal insulation jacket is designed to protect the valve from fire, heat and cold damage. Outside materials of this jacket are 3732 fiberglass fabric which is coated with silicone coating on one side. And it is soft and eco-friendly. Inside wadding materials are e-glass fiberglass needle mat. Covers made from these material are easy to remove and repair. The most important feature of this material is fire resistant. The working temperature of fiberglass cloth can be 550℃, while coating is only 260℃. Inside fiber glass needle mat can be used below 800℃.
The valves insulation jackets are customized by engineers who knows exactly what to consider in fabricating the highest-quality, best-fitting removable cover for each valve. Our exhaust blankets (or valve covers) are designed and engineered to serve as the thermal insulation solution for any size, shape or variety of valves.
Please send us the drawing of pump, valve or other products need the jackets, then our engineers will design the jackets according to your drawings. If you have the higher requirement for the materials of this thermal insulation covers, please contact us for more information, we can provide you the solutations and project to save your cost and make the good's with excellent quality.

IR Test Exampls: When temperature in gate valve 3inch went up to 300℃, IR showed the surface temperature of jacket is 32℃.

Features:

1. Reduce 20%-40% heat loss
2. Can be touched by hands, the surface temperature can be lowered to 32℃
3. We support customized service
4. Easy to install by velcro and buckles
5. Dimension, cut/hole sizes and positions are required, drawings and pictures are better
6. Waterproof, easy to clean
7. Oil/acid/chemical resistant
8. Multi-layer protection, anti-corrosion
9. Pollution free, neat out looking

Data Sheet Of Outside Materials:

Specifications Of Inside Materials:

• Width: up to 2400mm (94")
• Thermal conductivity: 0.0300 kcal/mhr°C
• Density: 100kg/m³ to 200m³
• Heat resistance: up to 800°C
• Thickness: 3mm - 30mm (0.12" - 1.18")

Unionfull® Group Ltd is a quality environment friendly (ISO - 9001 & 2008) modern, hi-tech enterprise specialized in manufacturing of Thermal Materials and Heat Resistant Materials, such as Fiberglass Fabric, Silica Cloth, Silicone coated Fiberglass Fabric, Needle Mat and so on. Unionfull Group Ltd,. China Thermal Products supplier provides a comprehensive range of products including:

        1) Fiberglass Fabric

        2) Thermal Insulation Materials

        3)  High Silica Fabric

        4) Silicone Coated Fiberglass Fabric

        5) Fiberglass Needle Mat

        6) Glass Roving

        7) Fiberglass Fire Blanket

        8) Welding Blanket

Our products are used by some of the very well known industrial houses in the Petrochemical, Power, Cement, Steel, Chemical, Pharmaceutical, Gas and Process Industry.
We heavily export our products to different companies / industrial houses in the UK, US, Europe, Australia, Africa and the Middle East.

Unionfull Group Ltd is your premier supplier of industrial thermal insulating, welding and cutting protection and safety products.
