1200℃ 1.3mm Fireproof Heavt duty Fiberglass Fabric High Silica
Cloth
Fiberglass high silica cloth is fiberglass fabric with more than
96% silica (SiO2). The softening point of this fabric is close to
1700℃.
| Test Temperature | Time(intact state) |
| ≤1200℃ | continuously |
| 1450℃ | 10 minutes |
| 1700℃ | 15 seconds |
Silica fabric is fiberglass fabric which is treated to be with
excellent fire protection. Especially it has superior resistance to molten metal splash/spatter. So it is a very suitable fabric for hot work welding protection and an ideal
materials for cutting operations. Because of its production
process, Unionfull's silica cloth provides improved chemical
corrasion and abrasion resistance (as they have a special finish). Besides,
silica cloth has low heat capacity / thermal conductivity.
This silica cloth has a high content of SiO2, so it provides excellent protection in high temperature
work environments. High silica fabric can be used for welding/ fire
protective blankets, protection curtains, duct connectors, gasket
materials in valves controlling the molten alloys and so on.
This material can be produced to many finished protection products.
If you need finished products like fire blanket and fire curtains,
please inform our sales what specific size you want (width x
length), so we can advise the right prices accordingly. Unionfull
is manufacturer so we can produce almost any size you may need. Brass metal eyelets (grommets) can be fitted to the edge(s) of
these silica fabrics to help easy suspension/securement.
Weave type of this 1200g fabric is Satin 12HS, 600g can be 8HS.
Color we have white and light brown.
Common width is 91.44cm and 100cm.
Please choose the specification you need, so a more correct price
can be given.
UPH-8120 Specification:
| Items | Weight | Thickness | Weave | Width | Temperature |
UPH-8120 | 1200g/m2 ± 30 | 1.3mm±0.05 | Satin 12HS | 100cm | ≤1200°C |
Features:
- High strength, high content of SiO2 (96%)
- Can be used under continuous temperatures of 1800°F • 982°C
- Low thermal conductivity / low heat capacity
- Better than e-glass fabrics on heat resistance
- Not split in the presence of water, also can be stable in vacuum.
- Chemical Resistance, stable properties
Applications:
- Resists molten metal splash - welding blankets
- Fire curtains
- Thermocouple insulation wrap
- Flame Fire resistant protection
- Thermal insulation barrier cover
- Won't burn, resist most acids, can be used as fire blanket in chemical factory
- Also can be used for the rocket, the missile, spacecraft for thermal insulation part

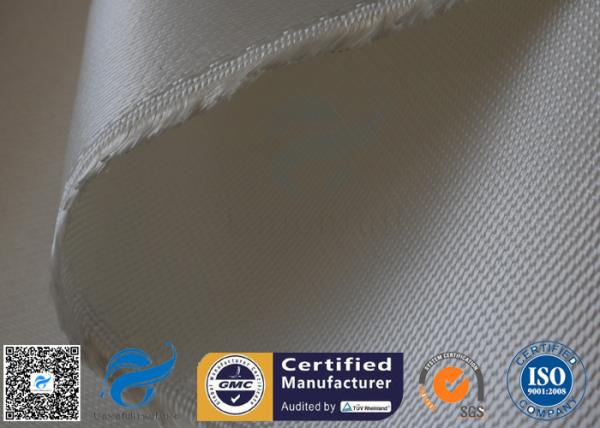

Pictures:
