    Fireproof Fiberglass Fabric 3732 0.4mm Satin Cross Twill E Glass Fibre Cloth

    Ask Lasest Price
    Brand Name : Unionfull
    Model Number : JT8430W-40-100
    Certification : ISO9001:2008, SGS
    Price : $1.4--$1.55/Square Meter
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 100000 square meters per day
    Delivery Time : 30 Days after the payment
    • Product Details
    • Company Profile

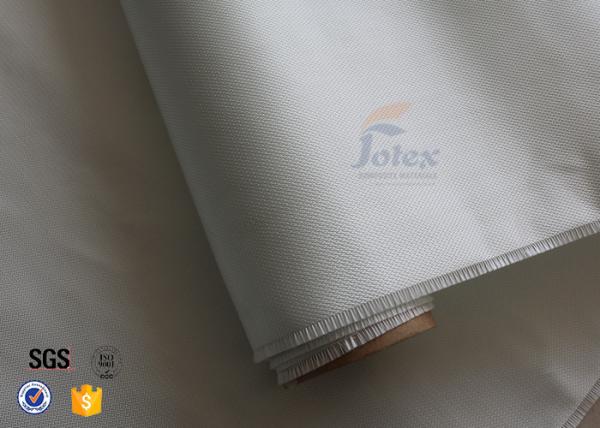

    Fireproof Fiberglass Fabric 3732 0.4mm Satin Cross Twill E Glass Fibre Cloth


    3732 0.4mm Satin Cross Twill E Glass Glass Fiber Cloth Fiberglass Fabric


    3732 fiber glass cloth is a kind of industrial fabric which is 430gsm and 0.4mm thick. It is Satin weave fabric, also called cross twil or break twill weave. Compared with the plain, satin weave is with higher density and it is a soft and loose structural weave.


    3732 fiberglass cloth can withstand 550°C(about 1022°F). It is always used in applications including thermal Insulation shields, welding protection, stress relieving, removable insulation covers(with silicone coating), fire blankets and curtains, fireproof bags and fabric air ducts. In order to meet some special purpose or to increase some peculiarities, always coat this fabric in various ways like waterproof PTFE/PVC coating, reflective aluminium foil laminating, Silicone/PU coating and other heat treating.


    Items3732
    WeaveSatin/Cross Twill
    Yarn (tex)Warp
    Weft
    G37 1/0 0.7Z
    G37 1/0 0.7Z
    Thickness0.43mm
    Weight430g/m²
    Thread CountWarp
    Weft
    19.6/cm
    11.5/cm
    Tensile StrengthWarp
    Weft
    6000N/5cm
    4500N/5cm
    L.O.I%0.5
    Working Temperature550°C

    Properties:


    1. Chemical corrosion resistance.
    2. Light weight
    3. High strength in both warp and weft direction;
    4. Fire resistance
    5. Electrical insulation properties
    6. Good soak and bonding with varieties of matrix resin, can be coated by Silicone/PTFE/PVC

    Appplications:


    • Fire Blanket/Fire curtains
    • Welding pads/blanket
    • Pipe/flange protection cover
    • Safety cloth and apron
    • Fire fighting equipments
    • Valve thermal insulation jacket/exhaust blanket

    Other Common Used Fiberglass Fabric:


    Model

    Density

    (per cm)

    Weight

    (g/m2)

    Thickness

    (mm)

    Weave type

    Size

    (m)

    762818/122000.2Plain1.27*1000m
    378418/128400.88HS Satin1m*50m
    378515/15105018HS Satin1m*50m
    378617/1113001.38HS Satin1m*50m
    378818/1316001.68HS Satin1m*50m

    Glass fiber is an engineerig material, which has the excellent properties such as anti-burns, anti-corrosion, heat-resistance, minimum elongated shrinkage, high density.


    This new material has already covered many field such as electric appliance, electronic insulation, transportation, chemical engineering, architectural engineering, heat insulation, sound absorption, fire protection and environmental application.
