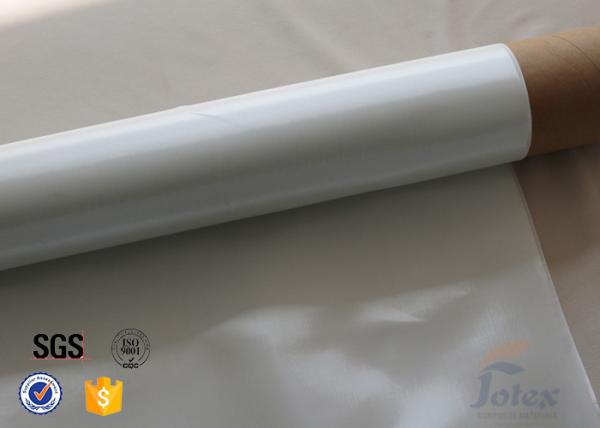

    7628 0.2mm E - Glass Electronic Fiberglass Fabric Cloth For Copper Clad Lamination

    Ask Lasest Price
    Brand Name : Unionfull
    Model Number : JT8200W-20-127
    Certification : ISO9001:2008, SGS
    Price : $0.80--1.35/m2
    Payment Terms : L/C, D/A, D/P, T/T, Western Union
    Supply Ability : 150000 Square Meters Per Day
    Delivery Time : 20 Working Days After Payment
    • Product Details
    • Company Profile

    7628 0.2mm E - Glass Electronic Fiberglass Fabric Cloth For Copper Clad Lamination

    7628 0.2mm E - Glass Electronic Fiberglass Cloth For Copper Clad Lamination


    This 7628 fiber glass cloth is a kind of electronic cloth. But except for electronic cloth, because of its light weight(5.9oz/yd2) and easy combinations, it is also used in many other fields.
    It is common used in Electronics, Electrical Appliances, Sport Products, Industrial, Basic Fabric For Coating, Model Aircraft, Automobiles, Fire Resistance, Decoration(after special treatment) and other applications.
    Data Sheet Of 7628 Fiberglass Cloth
    Model No.7628
    SeriesElectronic Fiberglass Fabric
    WeavePlain Weave
    Yarn TypeWarpEC9 68 1X0ECG 75 1/0
    WeftEC9 68 1X0ECG 75 1/0
    Weight200 g/m5.90 OZ/YD2
    Thickness0.2 mm0.008 inch
    Thread CountWarp17.3 per cm44 per inch
    Weft13 per cm31 per inch

    Tensile

    Strength

    Warp438 N/cm250 lbs/inch
    Weft350 N/cm200 lbs/inch
    Working Temperature≤550℃

    Properties:

    • High tensile strength
    • Chemical resistance
    • Fire resistance
    • Light, easily wet out by resin
    • Good dimensional stability, extremely low aberration

    Application:


    • Copper clad lamination, Electrical appliances
    • For coating, Thermal insulation
    • Aircraft, automobiles
    • Boat, surfboard
    • Bath tubs and enclosures, hot tubs
    • Water tanks, swimming pools
