Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm

Ask Lasest Price
Brand Name :	Unionfull
Model Number :	UPSH-8120D200
Certification :	ISO9001:2008,SGS,UV
Price :	$3.25--5.8/M2
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	5000 square meters per day
Delivery Time :	26 Working Days

Add to Cart

Product Details
Company Profile

Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm

Heat Resistant Double Sides Red Silicone Coated High Silica Fabric

Product Introduction

High silica Silicone coated fiberglass fabric/cloth is glass fiber as reinforcement of silicone elastomeric material and high molecular polymer, also known as thermal silicone cloth, anti tearing silicone. the silica gel cloth can effectively reduce the thermal resistance between the electronic component and the radiator. It has good characteristic of electrical insulation, high dielectric strength, good thermal conductivity, high resistance chemical properties, in addition, It can withstand problem of short circuit of high voltage and metal piercing , and is an excellent thermal conductive insulation material to instead of the traditional mica and silicone grease.

Data

Thread count wrap	16.5end/cm
Thread count weft	13.8end/cm
Width	920mm
Roll length	50m
Weight	1450g/m2
Weave	Satin
Impregnated	Silicone
Color	red
Thickness	1.3mm

Advantages

1. Dielectric strength high

2. Good thermal conductivity

3. Good toughness, tear resistance

4. Surface soft, no viscosity on surface

5. High voltage insulation performance

Applications

1. Military, aviation

2. Large power source

3. Heating power device

4. Automobile electronic heating module

5. Motor control, communication equipment

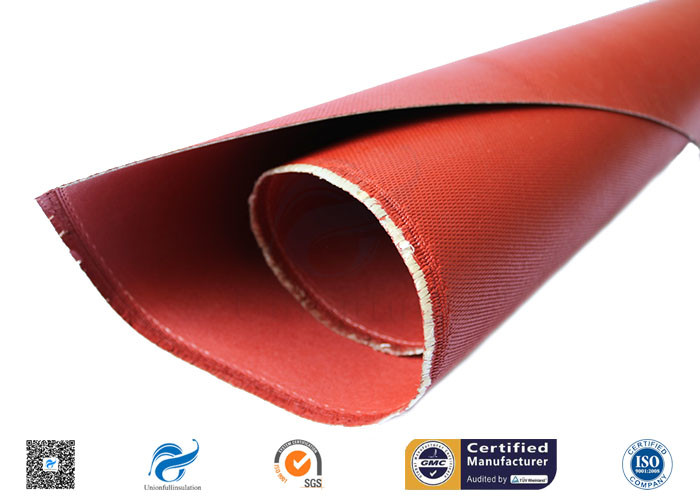

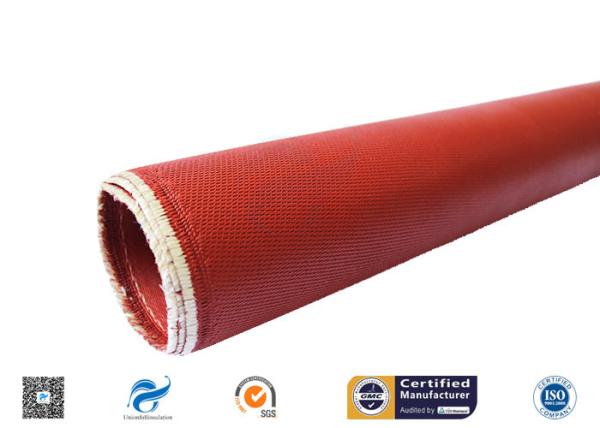

Pictures

Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
