300℃ Non Combustible 97% Heat Reflect Laminated Aluminium Foil
Fiberglass Cloth
Description:
Aluminum foil laminated fiberglass are made of basic fiberglass
fabrics laminated an aluminum foil or film on one side. It has a
smooth surface and can resistant radiant heat, performance
outstanding high strength, good luminous reflectance, sealing
insulation, gas-proof and water proof. The thickness of aluminum
foils is from 7micro to 25 micro, can reflects 95% or more of the
radiant heat that contacts its surface. Protects industrial wire,
cable, hose, hydraulics and equipment cabinets and enclosures.
Unionfull’s aluminum foil insulation can work both in cold and hot
climites.
1.The reflective of the pure aluminum foil is 97% ,that means it
can not only stop the radiant heat from the outside and also stop
the warmer loss from the inside .
2.The middle layer can slow down the heat conduction and convention
greatly .
this is why our material can work in both cold and hot climate , it
can keep cooler in summer and keep warmer in winter.
Data sheet Of UPCAL-8732:
Item
| Aluminum Foil Fiberglass Fabric |
Thickness
| 0.45mm |
Width
| 1 m, 1.2 m, 1.5 m |
Weight
| 450g/m2 |
Weave
| Satin |
Glass Yarn Type
| E-Glass/ C-Glass |
| Advantages | 95% radiant thermal reflective, Non-breath ability,Non-water permeability |
Yarn weft/warp
| ECG37 1/0,ECG37 1/0 |
Tensile strength
| 2000/1600(N/50mm) |
Working Temperature
| fiberglass fabric ≤ 500℃ Aluminium foil ≤ 300℃ Adhesive ≤ 300℃ |
Advantage
1.Moisture barrier,water-proof, fire-retarding and anti-corrosion
2.Low thermal conductivity and superior heat insulation;
3.Good tensile and tear strength
4.The material can not burn -self ,and not support burn
5.Good weather resistance
6.Does not contain hazardous chemicals.
7.Light weight and easy to handle
8.Low thermal conductivity
Main Application:
1.Heat insulation and light inflecting in construction and
protection for both cold water and hot water pipe
2.Packing for special products and cold storage
3.Sound-proof materials in construction and the protective layer of
super glass wool with excellent functions of
fire-resistance,anti-corrosion, heat isolation and sound
absorbability.
4.Electric insulation: can made into insulated fabric, sleeves, and
used in places which need high electric insulation grade.
5.Anti-corrosion sector: used as external and internal corrosion
proofing layer of pipeline and preservation jar, It is an ideal
corrosion-proofing material.

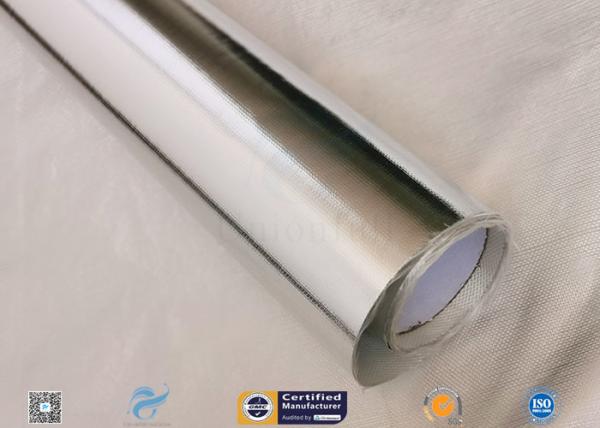

Pictures:
