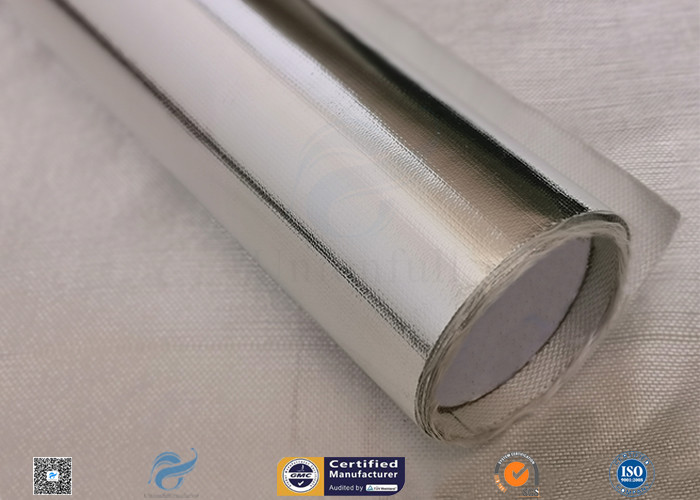

0.45mm Thick Sliver 13oz Laminated Fiberglass Cloth With Aluminium Foil For Facing
Description:
This cloth is laminated aluminium foil on the fiberglass cloth by
high temperature adhesive. By applying uniquely advanced compound
processing and using E-fibreglass as the base cloth and special
fire-resistant adhesive agent, Unionfull's product performance
excellent properties such as the smooth surface on the aluminium
foil, strong light reflection, good stretching resistance in
breadth, excellent sealing, non-water permeability, good weather
resistance,anti-burning. This new material product has already
covered many domains such as electric appliance, electronic,
transportation, chemical engineering, architectural engineering,
heat insulation, sound absorption, fire prevention and
environmental protection.
95% reflecting rate, could reflect most solar energy effectively
and barrier radiant effectively; light weight will not add more
burden to carrier; meanwhile fantastic durable because of glass
fiber mesh is strong enough; will not corrupt by moisture because
of 100% Inorganic raw materials was taken to produce it; pliable
and tough flexible easy to be installed from any angle.
Temperature resistant:
Fiberglass fabric: ≤550℃
Adhesive: ≤300℃
Aluminium foil: ≤300℃
Data sheet Of Basic Fabric:
Type
| C-glass/E-glass |
Item No.
| UPSE-8732 |
Thickness
| 0.43mm | 0.018inch |
Weight
| 430g/m2 | 12.6oz/yd2 |
Yarn weft/warp
| ECG37 1/0 | ECG37 1/0 |
Construction weft/warp
| 19.6/15 ends/cm | 19.6/15 ends/cm |
Temperature resistant
| ≤500℃ | ≤932℉ |
Tensile strength
| 2000/1600(N/50mm) | |
Data sheet Of UPCAL-8732:
Item
| Aluminum Foil Fiberglass Fabric |
Thickness
| 0.45mm |
Width
| 1 m, 1.2 m, 1.5 m |
Weight
| 450g/m2 |
Weave
| Satin |
Glass Yarn Type
| E-Glass/ C-Glass |
| Advantages | 95% radiant thermal reflective, Non-breath ability,Non-water permeability |
Advantage
1.Smooth surface on the aluminum foil
2.good stretching resistance in length and breadth
3.Low thermal conductivity and superior heat insulation;
4.Easy to install, high efficiency, maintenance free, environment
friendly.
5.Good fire resistance can be rated IMO part 5
6.95% heat reflection
7.Non-water permeability
8.Light weight and easy to handle
Main Application:
1.Used as the protective layer of super glass wool with excellent
functions of fire-resistance, anti-corrosion, heat isolation and
heat protection and sound absorption, sound-proof materials in
construction.
2.Heat insulation, sound absorption and noise reduction for car,
train, refrigerator car and laboratory; moisture proof cushion for
traveling
3.Packing for special products and cold storage
4.Making protective wear- gloves, covers
5.Wrapping materials of oil transportation pipelines and the steam
pipelines in the petrochemical industry, ducting with the same
effects as mentioned above
