Flame Retardant 4HS SilverHeat Reflective Aluminium Foil Laminated
Fiberglass Fabric
Description:
Aluminum foil coating is best for static applications and
temperatures up to 300°C, this fabric will withstand short duration
exposure up to 1115°F / 600°C and up to 3000°F / 1650°C for a very
short durations. The aluminum coating will melts at 1220°F / 660°C.
By applying uniquely advanced compound processing and using
fibreglass as the base cloth and special fire-resistant adhesive
agent, our product has the excellent properties such as the smooth
surface on the aluminium foil, strong light reflection, good
stretching resistance in length and breadth, non-breath ability,
non-breath ability, non-water permeability, good hermetic and
weather resistance.
4HS weave: also called Four-Harness Satin
In this weave pattern there is a three by one interlacing, where a
fill yarn floats over three warp yarns and under one.
Compared with plain weave and twill weave, it is of high
density,high intensity, with a soft and loose structural weave with
a good texture. It is applicable for use as a higher reinforced
material in machinery.
Details of Fiberglass Fabric:
Basic fabric
|
Type | C-glass |
Weave | Satin |
Yarn
|
Weft | ECG 37 1/0 |
Warp | ECG 37 1/0 |
Construction
|
Weft | 19.6±1 ends/cm |
| Warp | 15 ±1 ends/cm |
Tensile strength
|
Weft | 2000(N/50mm) |
Warp | 1600(N/50mm) |
Weight | 450g/m2±30g/m2 |
Thickness | 0.45mm±0.01mm |
Data sheet Of UPCAL-8732:
Item
| Aluminum Foil Fiberglass Fabric |
Aluminium Foil Thickness
| 7/14/18/25 Micron |
Width
| 1 m, 1.2 m, 1.5 m |
Length
| 50m |
Weight
| 450g/m2 |
Weave
| 4HS |
Glass Yarn Type
| C-Glass |
Yarn weft/warp
| ECG37 1/0,ECG37 1/0 |
Tensile strength
| 2000/1600(N/50mm) |
Working Temperature
| fiberglass fabric ≤ 500℃ Aluminium foil ≤ 300℃ Adhesive ≤ 300℃ |
Advantage
1. Clean, thin, light weight, good flexibility and cushioning;
2.Good stretching resistance
3.Excellent waterproof and vapor resistance
4.Cost effective and versatile
5.Non-water permeability
6.Reflects 97% radiant heat
7.Improves insulation system performance, energy saving
Main Application:
1.Heat insulation and light inflecting in construction and
protection for both cold water and hot water pipe
2.Packing for special products and cold storage
3.Sound-proof materials in construction and the protective layer of
super glass wool with excellent functions of
fire-resistance,anti-corrosion, heat isolation and sound
absorbability.
4.Electric insulation: can made into insulated fabric, sleeves, and
used in places which need high electric insulation grade.
5.Anti-corrosion sector: used as external and internal corrosion
proofing layer of pipeline and preservation jar, It is an ideal
corrosion-proofing material.

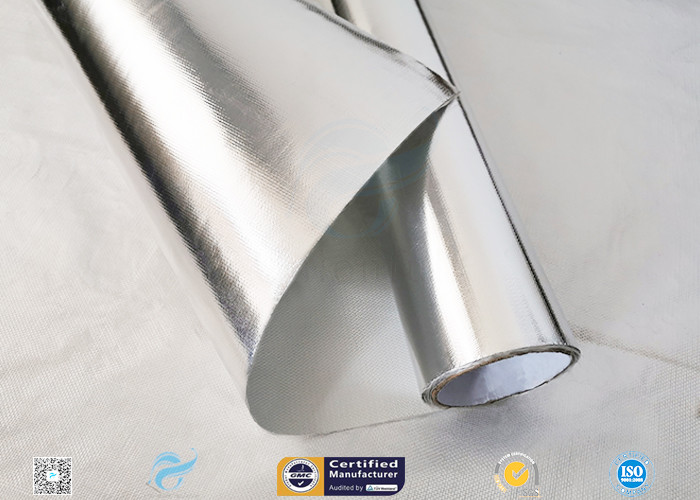

Pictures:
