0.85mm Thick 95% Heat Reflection Aluminium Foil Laminated
Fiberglass Fabric
Description:
Aluminum foil coating is best for static applications and
temperatures up to 650°F / 343°C, this fabric will withstand short
duration exposure up to 1115°F / 600°C and up to 3000°F / 1650°C
for very short durations. The aluminum coating melts at 1220°F /
660°C.
Aluminum foil fiberglass composite fabric reflects 95% or more of
the radiant heat that contacts its surface. Constructed from a
high-temperature base fiberglass which is then coated with aluminum
foil or aluminum film.
Fiberglass fabric coated with aluminium foil has excellent
properties such as smooth surface on the aluminum foil, strong
light reflection, good stretching resistance in length and breadth,
non-breath ability, non-water permeability, good hermetic and
weather resistance.
Temperature resistant:
Fiberglass fabric: ≤550℃
Adhesive: ≤300℃
Aluminium foil: ≤300℃
Data sheet Of Basic Fabric:
Type
| C-glass/E-glass |
Item No.
| UPSE-8784 |
Thickness
| 0.8mm | 0.032inch |
Weight
| 850g/m2 | 25oz/yd2 |
Yarn weft/warp
| ECG37 1/4,ECG37 1/5 | ECG37 1/4,ECG37 1/5 |
Construction weft/warp
| 8/6 ends/cm | 8/6 ends/cm |
Temperature resistant
| ≤500℃ | ≤932℉ |
Tensile strength
| 2600/2400(N/50mm) | |
Data sheet Of UPCAL-8784:
Item
| Aluminum Foil Fiberglass Fabric |
Thickness
| 0.85mm |
Width
| 1 m, 1.2 m, 1.5 m |
Weight
| 880g/m2 |
Weave
| Satin |
Glass Yarn Type
| E-Glass/ C-Glass |
| Advantages | 95% radiant thermal reflective, Non-breath ability,Non-water permeability |
Advantage
1.Smooth surface on the aluminum foil
2.good stretching resistance in length and breadth
3.Low thermal conductivity and superior heat insulation;
4.Keeps warmth in during winter and cools in summer
5.Good fire resistance can be rated IMO part 5
6.95% heat reflection
7.Moisture barrier,water-proof, fire-retarding and anti-corrosion
8.Light weight and easy to handle
Main Application:
1.Used as the protective layer of super glass wool with excellent
functions of fire-resistance, anti-corrosion, heat isolation and
heat protection and sound absorption, sound-proof materials in
construction.
2.Heat insulation, sound absorption and noise reduction for car,
train, refrigerator car and laboratory; moisture proof cushion for
traveling
3.Packing for special products and cold storage
4.Making protective wear- gloves, covers
5.Wrapping materials of oil transportation pipelines and the steam
pipelines in the petrochemical industry, ducting with the same
effects as mentioned above

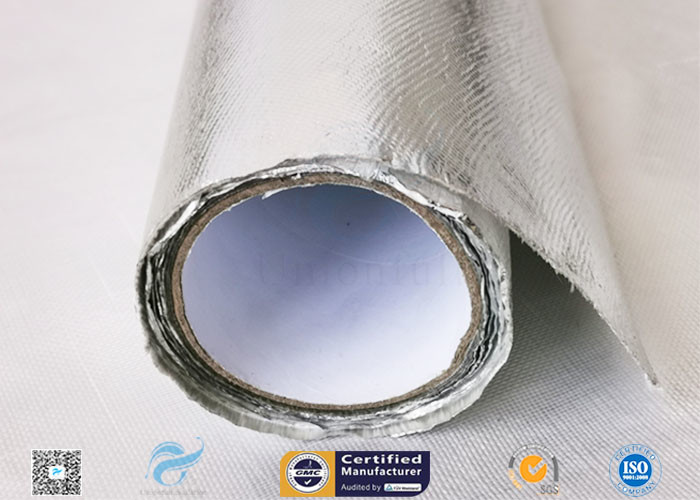

Pictures:
