    Non Asbestos 300℃ Butterfly Valve Gate Valve Gray Removable Insulation Cover

    Ask Lasest Price
    Brand Name : Unionfull
    Model Number : UPIJG-T-25
    Certification : ISO9001-2008; SGS;TUV
    Price : $20--$45 one piece
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 2800 PCS Per Day
    Delivery Time : 2 weeks after receiving payment
    • Product Details
    • Company Profile

    Non Asbestos 300℃ Butterfly Valve Gate Valve Gray Removable Insulation Cover

    Non Asbestos 300℃ Butterfly Valve Gate Valve Gray Removable Insulation Cover


    Tired of the extra time and labor it takes to install insulation jacket? Leave it to us. We do the following and much, much more:

    -Easy to disassemble and easy to install, saving more than 50% of manpower

    -Save 20%-45% energy

    -High adaptable, suitable for different shapes of insulation equipment

    -Free of asbestos

    -Short return on investment period (with 20% energy-saving rate, it takes 4 to 5 months to recover the cost. the higher the rate is, the less time it takes)


    At present, removable insulation cover is a high grade heat preserving material, and widely used in various valve, pipeline, warm-ventilation air-conditioning equip of metallurgy, petroleum etc.

    Removable insulation jacket is a custom designed flexible cover which is made of three layers: silicone coated fiberglass fabric, needle mat, silicone coated fiberglass fabric. With these materials, it can be used to insulate main fold and just about anything you can imagine.

    The Insulation Jacket is custom designed to significantly reduce heat loss and Surface temperature for Plastics Extrusion, Injection Molding, and Blow Molding. the reduction in heat loss can save energy, thereby saving process Electricity and air conditioning electricity. In addition to saving energy, the Reduced heat loss will improve the surrounding work environment, thus Increasing overall productivity.


    Properties:

    Almost smokeless

    Flame resistant

    High density fiberglass Insulation

    Improves Equipment Process

    Prevents heat loss and unnecessary emissions

    Waterproof and oil proof

    Pretty appearance and easy cleaning surface


    Construction:

    Out layersilicone coated fiberglass fabric
    Inner layerSilicone coated fiberglass fabric
    Insulation25mm fiberglass needle mat
    FixingNomex velcro
    ThreadKevlar
    Temperature resistant-50~400℃
    ApplicationFlange, Pipe, Butterfly Valve,gate valve,Turbine

    Data sheet Of Fabric:

    MaterialE-glass fiber cloth
    Coating

    Silicone rubber 2 sides

    Weight510g/m2 ± 10g/m2
    Thickness0.43mm ± 0.02mm
    ColorGray
    Temperature resistant-70 ~ +260℃
    Yarn typeECG37 1/0

    Main Application:

    Injection Molding Barrel Insulation

    Oil and gas processing industry

    Fireproof materials for construction
    High temperature equipment

    Steam turbines, gas turbines (as turbine blankets) and compressors

    Exhaust systems of engines

    Custom boat covers

    Pump & Compressor Insulation Covers

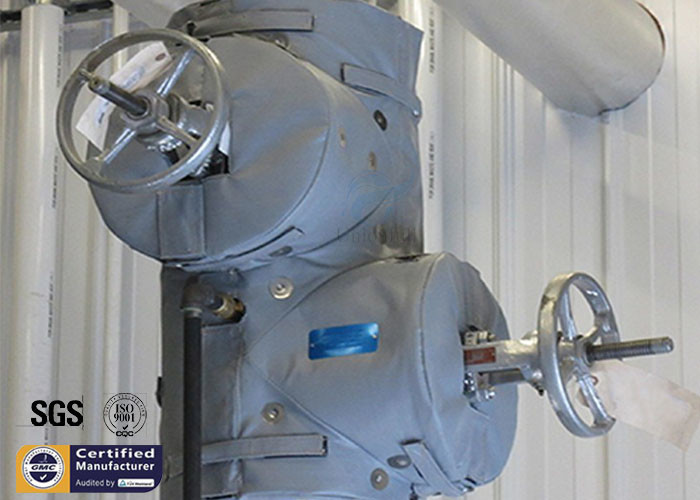

    Pictures:

    Non Asbestos 300℃ Butterfly Valve Gate Valve Gray Removable Insulation Cover

    Non Asbestos 300℃ Butterfly Valve Gate Valve Gray Removable Insulation Cover


    Quality Non Asbestos 300℃ Butterfly Valve Gate Valve Gray Removable Insulation Cover for sale
