900℃ Highly Heat Resistant Silica Fabric 0.7mm Brown High Silica
Cloth Satin Weave
High silica is made of silica fiberglass that contents more than
96% of SiO2. It is a kind of heat-resistant and soft inorganic
fiber. The material has excellent heat-resistant characteristics,
the softening point is close to 1700 ° C, long time service
temperature at 900 ° C, it can work for 10 minutes at 1450 ° C, and
keep well at 1600 ° C for 15 seconds. It also performs an
outstanding capability of high strength, easy processing, thermal
insulation and ablation resistance.
In generally, silica cloth can be produced at width of 92cm and
100cm, roll length at 50meters. UPH-860-100 is a heavy weight
fiberglass cloth weaved by 8HS, and weight at 650g/m2, so the
fabric is smooth, shiny and soft, meantime it is high strength and
abrasion resistance because of the fiberglass yarn.
Main Specifications
|
| Code | Weight (g/m2) | Thickness (mm) | Width(mm) | Color | Type |
UPSS-860-92
| 500 | 0.6 | 920 | Brown,white | Satin 8HS |
UPSH-860-92
| 600 | 0.7 | 920 | Brown,white | Satin 8HS |
UPSS-8120-92
| 1050 | 1.3 | 920 | Brown,white | Satin 12HS |
UPSH-8120-92
| 1150 | 1.3 | 920 | Brown,white | Satin 12HS |
UPSH-860-100
| 650 | 0.7 | 1000 | Brown,white | Satin 8HS |
UPSH-8120-100
| 1250 | 1.5 | 1000 | Brown,white | Satin 12HS |
Product specification:
| Items | High Silica Cloth |
| SiO2 | ≥96% |
| Area Weight | 650g/m2, 19oz |
| Thickness | 0.7mm/0.028inch |
| Color | Brown |
| Weave Type | 8HS |
| Width | 92cm/36 inches |
| Long time working temperature service | 900°C |
Properties:
1.Low thermal conductivity
2.Non-asbestos, without pollution
3.Good electrical insulation
4.Shiny, soft but tough
5.Highly heat resistant
6.96% silicone dioxide
7.Soft point up to 1700℃, long period service at 900℃
8.Good process performance
Applications:
1.Dust collecting and filtration equipment
2.molten metal splash protection
3.heat and flame shielding,stress relief,insulation
4.hose and cable protection and emergency fire blankets
5.Protective material for welding
6.Aircraft firewall insulation
7.Removable insulation jacket

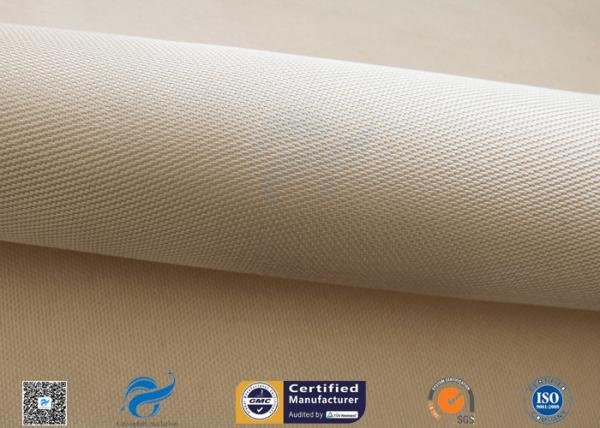

Product picture:
